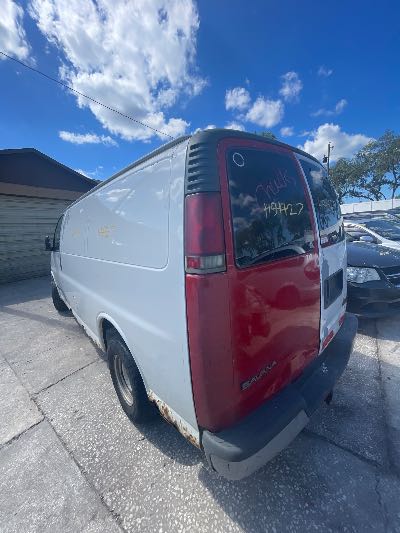

2002 GMC Savana Location - Large Trucks & Vans - Row 15 - Stock # H54427
Vehicle details
- 2002 GMC Savana
- Date Set in Yard: Oct 18, 2026
Trim
G1500 Cargo
Body
Cargo Van
Drive
RWD
Fuel
Regular gasoline
Engine
Engine family Vortec 4.3L V-6 regular gasoline, engine with 200HP
Displacement 4.3 L
Transmission
Transmission 4-speed automatic
Drive type RWD
Speed count 4
Trim / Package IDs
Factory package, option, and wheel details that help identify what parts are on the vehicle.
Packages
PackageBase Equipment Group 1SA
1SA • Base Equipment Group 1SA
C60: Front Air Conditioning
ZW9: Standard Body Code
UM7: AM/FM Stereo with Seek and Scan/digital Clock
VK3: Front License Plate Bracket
Factory Option Codes
NG1Northeast States Requirements
NC7Federal Override
L35Vortec 4300 V6 SFI Engine
M30Electronic 4-Speed Automatic Transmission with Overdrive
GT43.73 Axle Ratio
G80HD Rear Locking Differential
$252
C5Y7,100 lbs GVWR
$150
XHAFront P235/75R15X AS SBR BW Tires
$160
YHARear P235/75R15X AS SBR BW Tires
ZHASpare P235/75R15X AS SBR BW Tire
AS5Front Deluxe Buckets with Inboard Armrests
__GCustom Cloth Seat Trim
ZX2Driver and Passenger High Back Buckets
C49Rear Window Defogger
$154
AJ1Deep Tinted Glass
$140
ZW3Fixed Rear Side Doors Glass
$100
ZW2: Fixed Rear Door Glass
A18Rear Door Swing-Out Window
$80
A19Rear Side Door Swing-Out Window
$157
TR9Reading Lamps with Stepwell Lights
$160
ULAMP: Underhood Lamp
UM7AM/FM Stereo with Seek and Scan/digital Clock
Z82HD Trailering Special Equipment
$310
R7XNo-Charge Air
$-975
C60Front Air Conditioning
VK3Front License Plate Bracket
ZW9Standard Body Code
69GDark Pewter
50USummit White
ZW2Fixed Rear Door Glass
ULAMPUnderhood Lamp
STDWLGray Painted Wheels with Black Center Cap

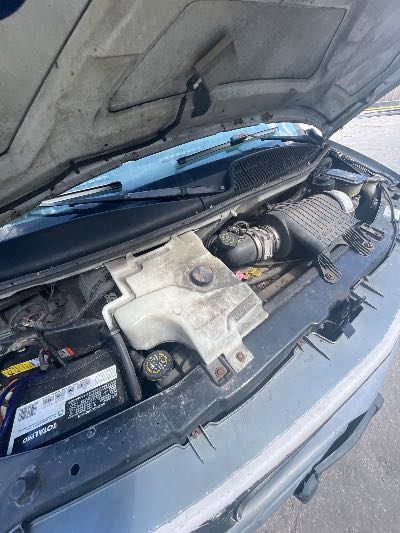

Engine & Powertrain
Core components
Fitment specs
Displacement cubic inch 262 cu.in.
Displacement liters 4.3 L
Alternator Amps 105 A
Engine Cylinders 6
Valves per cylinder 2
Included parts / features
- •Engine compartment light — Engine compartment light
- •Front mounted engine — Engine Location
- •Iron engine block — Engine block material
- •Longitudinal mounted engine — Engine Mounting direction
- •Vortec 4.3L V-6 — Engine Short
- •Vortec 4.3L V-6 regular gasoline, engine with 200HP — Engine
- •Vortec V6 — Engine Configuration
- •Alternator — Alternator Type
- •Iron cylinder head — Cylinder head material
- •Partial stainless steel single exhaust — Tailpipe
- •Radiator — Radiator
- •Regular gasoline — Fuel Type
Transmission & Driveline
Core components
Fitment specs
Axle ratio 3.73
Transmission Speeds 4
First gear ratio 3.06
Fourth gear ratio 0.7
Reverse gear ratio 2.29
Second gear ratio 1.63
Third gear ratio 1
Included parts / features
- •4-speed automatic — Transmission
- •Automatic — Transmission Type
- •Lock-up transmission — Lock-up transmission
- •Mechanical limited slip differential — Limited slip differential
- •Overdrive transmission — Overdrive transmission
- •Rear-wheel drive — Drive type
- •Rigid axle rear suspension — Suspension ride type rear
Suspension, Steering & Brakes
Core components
Included parts / features
- •Front ventilated disc brakes — Ventilated brakes
- •Gas-pressurized shock absorbers — Shock absorbers
- •Three channel ABS brakes — ABS Brakes
- •Front coil springs — Springs front
- •Hydraulic power-assist steering system — Steering
- •Independent front suspension — Suspension ride type front
- •Leaf spring rear suspension — Suspension type rear
- •Re-circulating ball steering — Steering type
- •Rear leaf springs — Springs rear
- •Regular grade rear springs — Rear Springs
- •Short and long arm front suspension — Suspension type front
- •Speed sensitive power steering — Speed sensitive steering
- •Standard ride suspension — Suspension
Exterior Specs
Fitment specs
Front track 67.7"
Rear track 67.6"
Exterior components
Included parts / features
- •Front license plate bracket — License plate front bracket
Wheels & Tires
Exterior components
Included parts / features
- •15 x 6-inch front and rear gray steel wheels — Wheels
- •Crank-down spare tire — Spare tire location
- •Full-size spare tire with steel wheel — Spare tire
- •P235/75SR15 AS BSW front and rear tires — Tires
- •Wheel hub covers — Wheel covers
- •Black rear window trim — Rear window trim
- •Black side window trim — Window Trim
- •Black windshield trim — Windshield trim
Exterior Specs
Fitment specs
Front tire aspect ratio 75
Front tire diameter 15.0"
Front tire width 9.3"
Rear tire aspect ratio 75
Rear tire diameter 15.0"
Rear tire width 9.3"
Exterior Body & Lighting
Exterior components
Included parts / features
- •3 doors — Number of doors
- •Black door handles — Door handle material
- •Black door mirrors — Door mirror style
- •Black rear bumper rub strip — Bumper rub strip rear
- •Rear bumper step — Rear bumper step
- •Silver front bumper — Bumpers front
- •Silver rear bumper — Bumpers rear
- •Standard style side mirrors — Door mirror type
- •Class IV tow rating — Towing class
- •Fully galvanized steel body panels with side impact beams — Body panels
- •Monotone paint — Special paint
- •Non-metallic paint — Paint
- •Trailer hitch — Towing hitch
- •Trailer wiring harness — Towing wiring harness
- •Xxxxxx grille — Grille style
Exterior Specs
Fitment specs
Standard payload 1461 lbs.
Vehicle turning radius 22.54'
Interior & Seating
Interior Specs
Fitment specs
Interior cargo area height 54.8"
Interior cargo area max width 75.5"
Interior cargo area min width 50.7"
Interior cargo length 127.3"
Electronics & Convenience
Overview
Fitment specs
Air Conditioning Air Conditioning
Included parts / features
- •2 — Seating capacity
- •2 seatback storage pockets — Seatback storage pockets
- •Bucket front seats — Split front seats
- •Cloth front seat upholstery — Front seat upholstery
- •Day/Night rearview mirror — Day/Night rearview mirror
- •Driver and passenger door bins — Door bins front
- •Driver seat armrest — Armrests front driver
- •Driver seat manual reclining and fore/aft control — Manual driver seat controls
- •Driver seat with 4-way directional controls — Driver seat direction
- •Engine/electric motor temperature gauge — Engine/electric motor temperature gauge
- •Fixed front seat head restraints — Front head restraints
- •Floor console storage — Floor console storage
- •Front passenger seat armrest — Armrests front passenger
- •Front passenger seat with 4-way directional controls — Passenger seat direction
- •Headlights on reminder — Headlights on reminder
- •Manual door locks — Door locks
- •Manual folding door mirrors — Folding door mirrors
- •Manual tailgate/rear door lock — Tailgate control
- •Partial floor console — Floor console
- •Passenger seat manual reclining and fore/aft control — Manual passenger seat controls
- •Split swing-out rear cargo door — Rear cargo door
- •Split swing-out right rear passenger door — Passenger doors rear right
- •Urethane steering wheel — Steering wheel material
- •Vinyl front seatback upholstery — Front seatback upholstery
- •Manual climate control — Climate control
- •2 12V power outlets — 12V power outlets
- •Ashtray — Ashtray
- •Battery charge warning — Battery charge warning
- •Cloth headliner material — Headliner material
- •Deep tinted windows — Tinted windows
- •Digital clock — Clock
- •Fixed third-row windows — Third-row windows
- •Front beverage holders — Beverage holders
- •Front cigarette lighter — Cigarette lighter
- •Front headliner coverage — Headliner coverage
- •Front reading lights — Front reading lights
- •Full floor coverage — Floor coverage
- •Full vinyl floor covering — Floor covering
- •Key in vehicle warning — Key in vehicle warning
- •Manual first-row windows — First-row windows
- •Mechanical — Ignition type
- •Oil pressure gauge — Oil pressure gauge
- •Rear cargo area light — Rear cargo light
- •Rear window defroster — Rear window defroster
- •Sun visor strip — Sun visor strip
- •Trip odometer — Trip odometer
- •Urethane gear shifter material — Gearshifter material
- •Variable instrument panel light — Variable panel light
- •Variable intermittent front windshield wipers — Wipers
- •Vinyl/rubber rear cargo area floor — Rear cargo floor type
- •Voltmeter — Voltmeter
- •Yes — Air conditioning
Audio and cabin electronics
Included parts / features
- •2 speakers — Speakers number
- •Fixed audio antenna — Antenna
- •Standard grade speakers — Speakers
Safety & Driver Assist
Related safety components
Included parts / features
- •4-wheel antilock (ABS) brakes — ABS Brakes
- •Front disc and rear drum brakes — Brake type
- •Front height adjustable seatbelts — Height adjustable seatbelts
- •Halogen headlights — Headlights
- •Manual rear child safety door locks — Child door locks
- •Sealed beam headlights — Headlight type
- •2 airbags — Number of airbags
- •Analog instrumentation display — Instrumentation display
- •Daytime running lights — Running lights
- •Driver front impact airbag — Front impact airbag driver
- •High mounted center stop light — High mount stop light
- •PassLock immobilizer — Immobilizer
- •Passenger front impact airbag — Front impact airbag passenger
Other Installed Equipment
Core components
Fitment specs
Battery rating 600 CCA
Bore 4"
Compression ratio 9.2
Injection Type Sequential MPI
Stroke 3.48"
Included parts / features
- •Front anti-roll bar — Front anti-roll
- •Heavy-duty lead acid battery — Battery type
- •ICE — Powertrain type
- •Spark ignition system — Ignition
Audio and cabin electronics
Included parts / features
- •AM/FM — Radio
- •Seek scan — Seek scan
MED Duty Specs
Fitment specs
Frame yield strength (psi) 33000
